场景

• K3s + Docker

前置条件

• 安装好nvidia-container-toolkit，确保有nvidia运行时

• NVIDIA DCGM

• 已在K3s上部署Prometheus + Grafana

传递

NVIDIA GPU —> NVIDIA Driver —> DCGM —> DCGM-Exporter —> Prometheus —> Grafana

步骤

为K3s增加runtimeclass

• 注意handler要为docker，设置为nvidia是不对的，会出现RuntimeHandler "nvidia" not supported报错

apiVersion: node.k8s.io/v1
kind: RuntimeClass
metadata:
  name: nvidia
handler: docker

手动下载dcgm-exporter

git clone https://github.com/NVIDIA/dcgm-exporter.git

修改deployment/values.yaml

• 暴露给Prometheus

• 配置更多资源，解决OOMKilled问题

podAnnotations:
# Using this annotation which is required for prometheus scraping
  prometheus.io/scrape: "true"
  prometheus.io/port: "9400"

resources:
  limits:
    cpu: 512m
    memory: 512Mi
  requests:
    cpu: 512m
    memory: 512Mi

安装

helm install dcgm-exporter -n dcgm-exporter --create-namespace ./

引入面板

• Dashboards -> New -> Import -> 12239 Load -> prometheus default data source

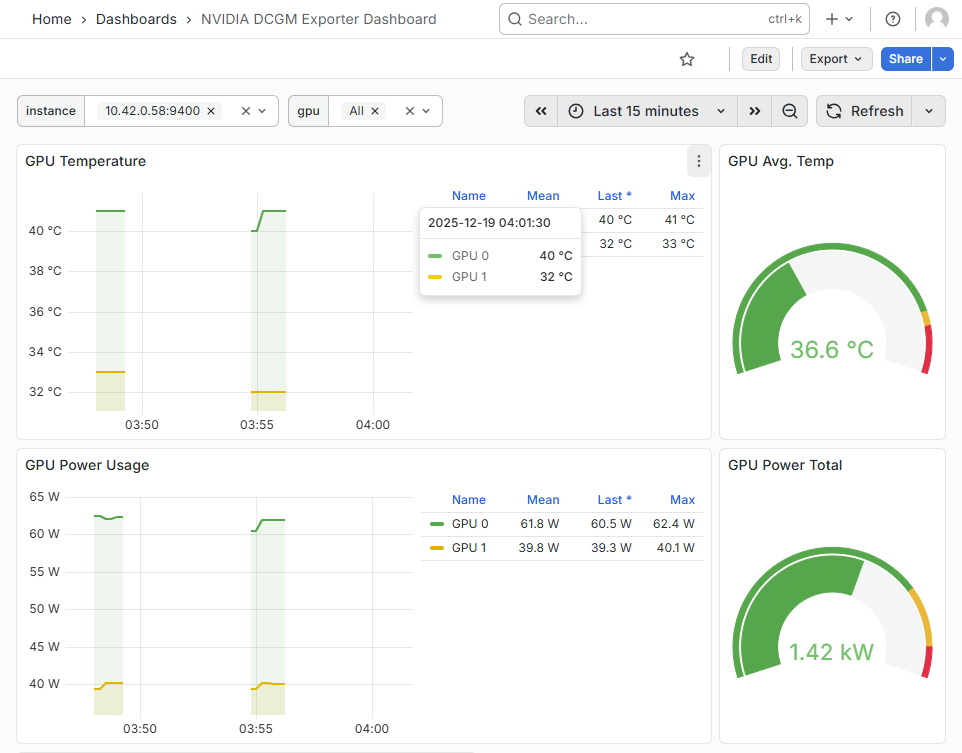

效果

坑

• 如果按照官方建议的方法安装Nvidia GPU Operator，当使用helm安装时，会自动触发hook，修改docker的daemon.json文件并重新加载
